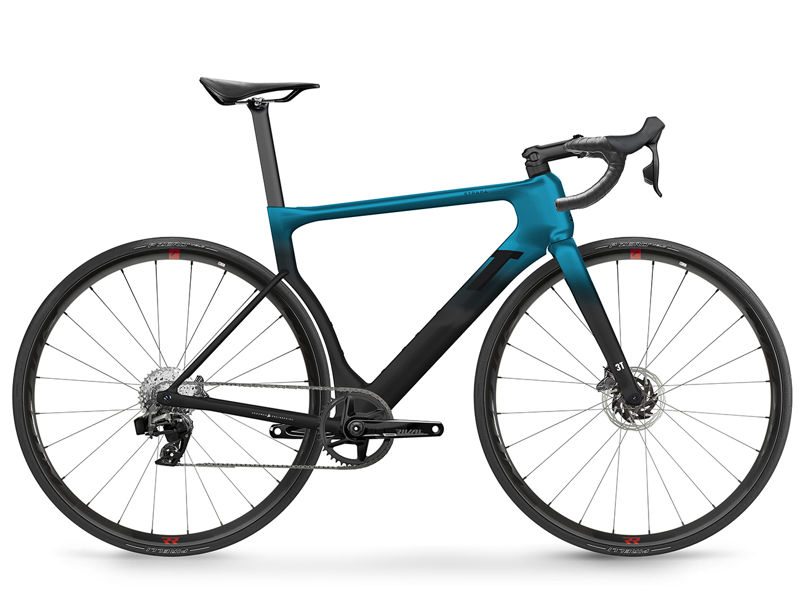

2023 3T New Strada geometry
Full frame geometry for the 2023 3T New Strada, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 501 | 349 | 72.5 | 69.5 | 119 | 507 | 487 | 71 | 567 | 405 |
| 51 | 507 | 369 | 72.5 | 71 | 119 | 529 | 500 | 69 | 574 | 405 |
| 54 | 536 | 381 | 72.5 | 72.7 | 143 | 550 | 506 | 69 | 580 | 405 |
| 56 | 565 | 393 | 72.5 | 73.2 | 172 | 571 | 518 | 69 | 596 | 405 |
| 58 | 594 | 405 | 72.5 | 73.2 | 202 | 592 | 533 | 69 | 616 | 405 |
All measurements in millimetres unless marked (°) for angles.
