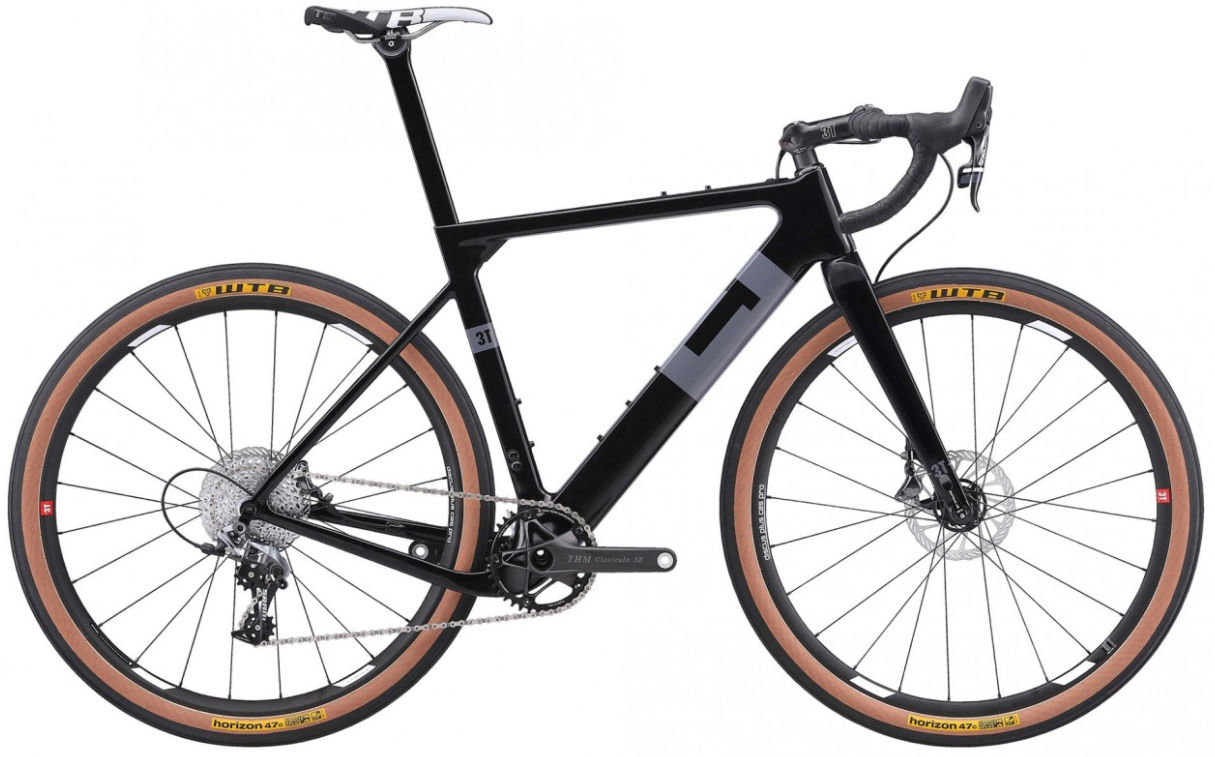

2016 3T Exploro geometry
Full frame geometry for the 2016 3T Exploro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 517 | 366 | 72.5 | 69.5 | 101 | 529 | 463 | 774 | 70 | 591 | 415 | 996 | 50 | 77 |
| M | 546 | 378 | 72.5 | 71.1 | 125 | 550 | 490 | 803 | 70 | 599 | 415 | 1004 | 50 | 67 |
| L | 575 | 390 | 72.5 | 72.5 | 150 | 572 | 518 | 832 | 70 | 606 | 415 | 1011 | 50 | 58 |
| XL | 604 | 402 | 72.5 | 72.5 | 180 | 593 | 545 | 861 | 70 | 627 | 415 | 1032 | 50 | 58 |
All measurements in millimetres unless marked (°) for angles.
