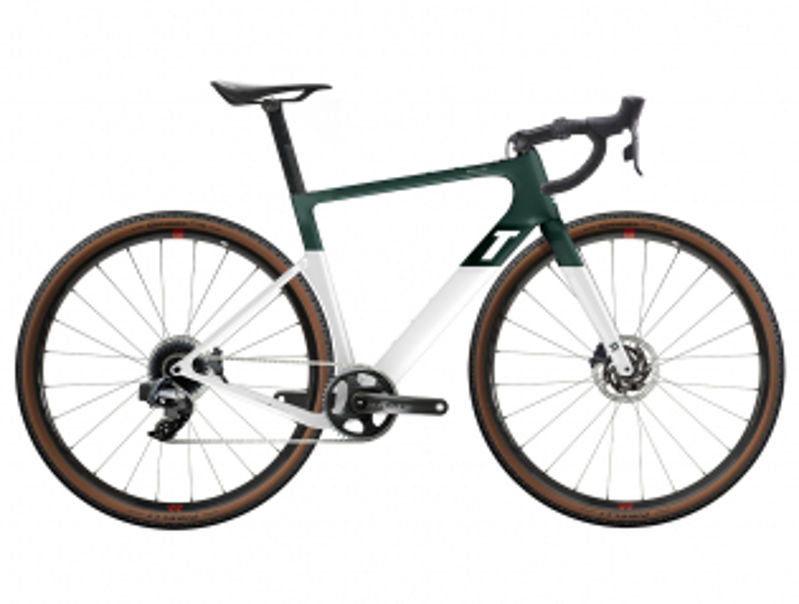

2024 3T Exploro Racemax geometry
Full frame geometry for the 2024 3T Exploro Racemax, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 544 | 364 | 72.5 | 69.2 | 147 | 518 | 463 | 77 | 612 | 418 | 1018 |
| 54 | 566 | 374 | 72.5 | 70.7 | 161 | 536 | 490 | 77 | 607 | 418 | 1013 |
| 56 | 586 | 382 | 72.5 | 71.7 | 180 | 549 | 518 | 75 | 612 | 418 | 1019 |
| 58 | 606 | 390 | 72.5 | 72.2 | 201 | 563 | 545 | 73 | 622 | 418 | 1028 |
All measurements in millimetres unless marked (°) for angles.
